Always the top level node. More...

#include </home/andreas/Development/drewke.net/tdme2/ext/tinyxml/tinyxml.h>

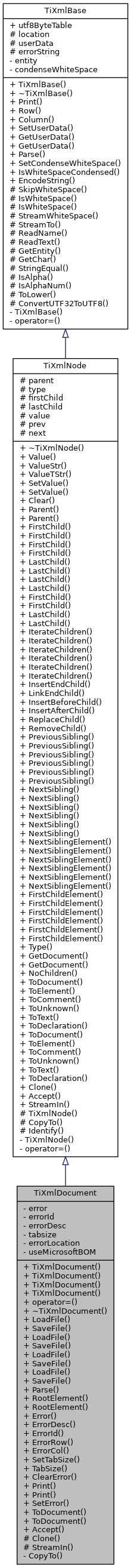

Inheritance diagram for TiXmlDocument:

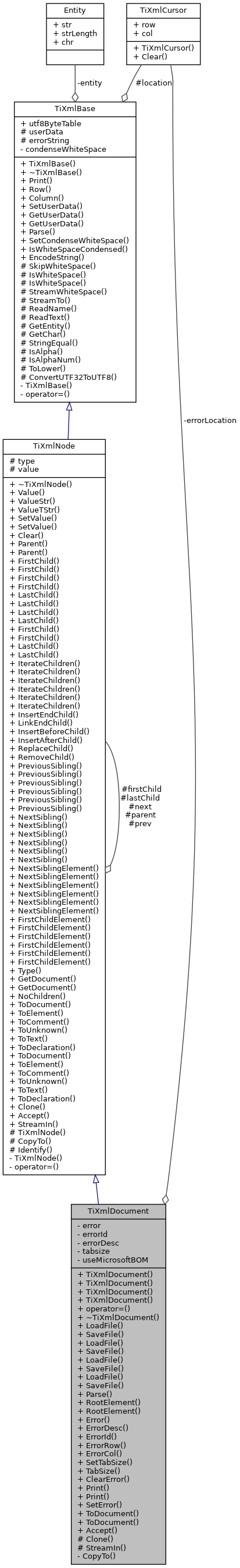

Collaboration diagram for TiXmlDocument:

Public Member Functions
	TiXmlDocument ()
	Create an empty document, that has no name. More...

	TiXmlDocument (const char *documentName)
	Create a document with a name. The name of the document is also the filename of the xml. More...

	TiXmlDocument (const std::string &documentName)
	Constructor. More...

	TiXmlDocument (const TiXmlDocument &copy)

TiXmlDocument &	operator= (const TiXmlDocument &copy)

virtual	~TiXmlDocument ()

bool	LoadFile (TiXmlEncoding encoding=TIXML_DEFAULT_ENCODING)
	Load a file using the current document value. More...

bool	SaveFile () const
	Save a file using the current document value. Returns true if successful. More...

bool	LoadFile (const char *filename, TiXmlEncoding encoding=TIXML_DEFAULT_ENCODING)
	Load a file using the given filename. Returns true if successful. More...

bool	SaveFile (const char *filename) const
	Save a file using the given filename. Returns true if successful. More...

bool	LoadFile (FILE *, TiXmlEncoding encoding=TIXML_DEFAULT_ENCODING)
	Load a file using the given FILE*. More...

bool	SaveFile (FILE *) const
	Save a file using the given FILE*. Returns true if successful. More...

bool	LoadFile (const std::string &filename, TiXmlEncoding encoding=TIXML_DEFAULT_ENCODING)

bool	SaveFile (const std::string &filename) const
	< STL std::string version. More...

virtual const char *	Parse (const char p, TiXmlParsingData data=0, TiXmlEncoding encoding=TIXML_DEFAULT_ENCODING)
	Parse the given null terminated block of xml data. More...

const TiXmlElement *	RootElement () const
	Get the root element – the only top level element – of the document. More...

TiXmlElement *	RootElement ()

bool	Error () const
	If an error occurs, Error will be set to true. More...

const char *	ErrorDesc () const
	Contains a textual (english) description of the error if one occurs. More...

int	ErrorId () const
	Generally, you probably want the error string ( ErrorDesc() ). More...

int	ErrorRow () const
	Returns the location (if known) of the error. More...

int	ErrorCol () const
	The column where the error occured. See ErrorRow() More...

void	SetTabSize (int _tabsize)
	SetTabSize() allows the error reporting functions (ErrorRow() and ErrorCol()) to report the correct values for row and column. More...

int	TabSize () const

void	ClearError ()
	If you have handled the error, it can be reset with this call. More...

void	Print () const
	Write the document to standard out using formatted printing ("pretty print"). More...

virtual void	Print (FILE *cfile, int depth=0) const
	Print this Document to a FILE stream. More...

void	SetError (int err, const char errorLocation, TiXmlParsingData prevData, TiXmlEncoding encoding)

virtual const TiXmlDocument *	ToDocument () const
	Cast to a more defined type. Will return null not of the requested type. More...

virtual TiXmlDocument *	ToDocument ()
	Cast to a more defined type. Will return null not of the requested type. More...

virtual bool	Accept (TiXmlVisitor *content) const
	Walk the XML tree visiting this node and all of its children. More...

Public Member Functions inherited from TiXmlNode
virtual	~TiXmlNode ()

const char *	Value () const
	The meaning of 'value' changes for the specific type of TiXmlNode. More...

const std::string &	ValueStr () const
	Return Value() as a std::string. More...

const TIXML_STRING &	ValueTStr () const

void	SetValue (const char *_value)
	Changes the value of the node. More...

void	SetValue (const std::string &_value)
	STL std::string form. More...

void	Clear ()
	Delete all the children of this node. Does not affect 'this'. More...

TiXmlNode *	Parent ()
	One step up the DOM. More...

const TiXmlNode *	Parent () const

const TiXmlNode *	FirstChild () const
	The first child of this node. Will be null if there are no children. More...

TiXmlNode *	FirstChild ()

const TiXmlNode *	FirstChild (const char *value) const
	The first child of this node with the matching 'value'. More...

TiXmlNode *	FirstChild (const char *_value)
	The first child of this node with the matching 'value'. Will be null if none found. More...

const TiXmlNode *	LastChild () const

TiXmlNode *	LastChild ()
	The last child of this node. Will be null if there are no children. More...

const TiXmlNode *	LastChild (const char *value) const

TiXmlNode *	LastChild (const char *_value)
	The last child of this node matching 'value'. Will be null if there are no children. More...

const TiXmlNode *	FirstChild (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	FirstChild (const std::string &_value)
	STL std::string form. More...

const TiXmlNode *	LastChild (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	LastChild (const std::string &_value)
	STL std::string form. More...

const TiXmlNode *	IterateChildren (const TiXmlNode *previous) const
	An alternate way to walk the children of a node. More...

TiXmlNode *	IterateChildren (const TiXmlNode *previous)

const TiXmlNode *	IterateChildren (const char value, const TiXmlNode previous) const
	This flavor of IterateChildren searches for children with a particular 'value'. More...

TiXmlNode *	IterateChildren (const char _value, const TiXmlNode previous)

const TiXmlNode *	IterateChildren (const std::string &_value, const TiXmlNode *previous) const
	STL std::string form. More...

TiXmlNode *	IterateChildren (const std::string &_value, const TiXmlNode *previous)
	STL std::string form. More...

TiXmlNode *	InsertEndChild (const TiXmlNode &addThis)
	Add a new node related to this. More...

TiXmlNode *	LinkEndChild (TiXmlNode *addThis)
	Add a new node related to this. More...

TiXmlNode *	InsertBeforeChild (TiXmlNode *beforeThis, const TiXmlNode &addThis)
	Add a new node related to this. More...

TiXmlNode *	InsertAfterChild (TiXmlNode *afterThis, const TiXmlNode &addThis)
	Add a new node related to this. More...

TiXmlNode *	ReplaceChild (TiXmlNode *replaceThis, const TiXmlNode &withThis)
	Replace a child of this node. More...

bool	RemoveChild (TiXmlNode *removeThis)
	Delete a child of this node. More...

const TiXmlNode *	PreviousSibling () const
	Navigate to a sibling node. More...

TiXmlNode *	PreviousSibling ()

const TiXmlNode *	PreviousSibling (const char *) const
	Navigate to a sibling node. More...

TiXmlNode *	PreviousSibling (const char *_prev)

const TiXmlNode *	PreviousSibling (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	PreviousSibling (const std::string &_value)
	STL std::string form. More...

const TiXmlNode *	NextSibling (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	NextSibling (const std::string &_value)
	STL std::string form. More...

const TiXmlNode *	NextSibling () const
	Navigate to a sibling node. More...

TiXmlNode *	NextSibling ()

const TiXmlNode *	NextSibling (const char *) const
	Navigate to a sibling node with the given 'value'. More...

TiXmlNode *	NextSibling (const char *_next)

const TiXmlElement *	NextSiblingElement () const
	Convenience function to get through elements. More...

TiXmlElement *	NextSiblingElement ()

const TiXmlElement *	NextSiblingElement (const char *) const
	Convenience function to get through elements. More...

TiXmlElement *	NextSiblingElement (const char *_next)

const TiXmlElement *	NextSiblingElement (const std::string &_value) const
	STL std::string form. More...

TiXmlElement *	NextSiblingElement (const std::string &_value)
	STL std::string form. More...

const TiXmlElement *	FirstChildElement () const
	Convenience function to get through elements. More...

TiXmlElement *	FirstChildElement ()

const TiXmlElement *	FirstChildElement (const char *_value) const
	Convenience function to get through elements. More...

TiXmlElement *	FirstChildElement (const char *_value)

const TiXmlElement *	FirstChildElement (const std::string &_value) const
	STL std::string form. More...

TiXmlElement *	FirstChildElement (const std::string &_value)
	STL std::string form. More...

int	Type () const
	Query the type (as an enumerated value, above) of this node. More...

const TiXmlDocument *	GetDocument () const
	Return a pointer to the Document this node lives in. More...

TiXmlDocument *	GetDocument ()

bool	NoChildren () const
	Returns true if this node has no children. More...

virtual const TiXmlElement *	ToElement () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlComment *	ToComment () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlUnknown *	ToUnknown () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlText *	ToText () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlDeclaration *	ToDeclaration () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlElement *	ToElement ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlComment *	ToComment ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlUnknown *	ToUnknown ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlText *	ToText ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlDeclaration *	ToDeclaration ()
	Cast to a more defined type. Will return null if not of the requested type. More...

Public Member Functions inherited from TiXmlBase
	TiXmlBase ()

virtual	~TiXmlBase ()

int	Row () const
	Return the position, in the original source file, of this node or attribute. More...

int	Column () const
	See Row() More...

void	SetUserData (void *user)
	Set a pointer to arbitrary user data. More...

void *	GetUserData ()
	Get a pointer to arbitrary user data. More...

const void *	GetUserData () const
	Get a pointer to arbitrary user data. More...

Protected Member Functions
virtual TiXmlNode *	Clone () const
	Create an exact duplicate of this node and return it. More...

virtual void	StreamIn (std::istream in, TIXML_STRING tag)

Protected Member Functions inherited from TiXmlNode
	TiXmlNode (NodeType _type)

void	CopyTo (TiXmlNode *target) const

TiXmlNode *	Identify (const char *start, TiXmlEncoding encoding)

Private Member Functions
void	CopyTo (TiXmlDocument *target) const

Private Attributes
bool	error

int	errorId

TIXML_STRING	errorDesc

int	tabsize

TiXmlCursor	errorLocation

bool	useMicrosoftBOM

Additional Inherited Members
Public Types inherited from TiXmlNode
enum	NodeType { TINYXML_DOCUMENT , TINYXML_ELEMENT , TINYXML_COMMENT , TINYXML_UNKNOWN , TINYXML_TEXT , TINYXML_DECLARATION , TINYXML_TYPECOUNT }
	The types of XML nodes supported by TinyXml. More...

Public Types inherited from TiXmlBase
enum	{ TIXML_NO_ERROR = 0 , TIXML_ERROR , TIXML_ERROR_OPENING_FILE , TIXML_ERROR_PARSING_ELEMENT , TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME , TIXML_ERROR_READING_ELEMENT_VALUE , TIXML_ERROR_READING_ATTRIBUTES , TIXML_ERROR_PARSING_EMPTY , TIXML_ERROR_READING_END_TAG , TIXML_ERROR_PARSING_UNKNOWN , TIXML_ERROR_PARSING_COMMENT , TIXML_ERROR_PARSING_DECLARATION , TIXML_ERROR_DOCUMENT_EMPTY , TIXML_ERROR_EMBEDDED_NULL , TIXML_ERROR_PARSING_CDATA , TIXML_ERROR_DOCUMENT_TOP_ONLY , TIXML_ERROR_STRING_COUNT }

Static Public Member Functions inherited from TiXmlBase
static void	SetCondenseWhiteSpace (bool condense)
	The world does not agree on whether white space should be kept or not. More...

static bool	IsWhiteSpaceCondensed ()
	Return the current white space setting. More...

static void	EncodeString (const TIXML_STRING &str, TIXML_STRING *out)
	Expands entities in a string. More...

Static Public Attributes inherited from TiXmlBase
static const int	utf8ByteTable [256]

Static Protected Member Functions inherited from TiXmlBase
static const char *	SkipWhiteSpace (const char *, TiXmlEncoding encoding)

static bool	IsWhiteSpace (char c)

static bool	IsWhiteSpace (int c)

static bool	StreamWhiteSpace (std::istream in, TIXML_STRING tag)

static bool	StreamTo (std::istream in, int character, TIXML_STRING tag)

static const char *	ReadName (const char p, TIXML_STRING name, TiXmlEncoding encoding)

static const char *	ReadText (const char in, TIXML_STRING text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)

static const char *	GetEntity (const char in, char value, int *length, TiXmlEncoding encoding)

static const char *	GetChar (const char p, char _value, int *length, TiXmlEncoding encoding)

static bool	StringEqual (const char p, const char endTag, bool ignoreCase, TiXmlEncoding encoding)

static int	IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)

static int	IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)

static int	ToLower (int v, TiXmlEncoding encoding)

static void	ConvertUTF32ToUTF8 (unsigned long input, char output, int length)

Protected Attributes inherited from TiXmlNode
TiXmlNode *	parent

NodeType	type

TiXmlNode *	firstChild

TiXmlNode *	lastChild

TIXML_STRING	value

TiXmlNode *	prev

TiXmlNode *	next

Protected Attributes inherited from TiXmlBase
TiXmlCursor	location

void *	userData
	Field containing a generic user pointer. More...

Static Protected Attributes inherited from TiXmlBase
static const char *	errorString [TIXML_ERROR_STRING_COUNT]

Detailed Description

Always the top level node.

A document binds together all the XML pieces. It can be saved, loaded, and printed to the screen. The 'value' of a document node is the xml file name.

Definition at line 1316 of file tinyxml.h.

Constructor & Destructor Documentation

◆ TiXmlDocument() [1/4]

TiXmlDocument ( )

Create an empty document, that has no name.

Definition at line 883 of file tinyxml.cpp.

◆ TiXmlDocument() [2/4]

TiXmlDocument ( const char * documentName )

Create a document with a name. The name of the document is also the filename of the xml.

Definition at line 890 of file tinyxml.cpp.

◆ TiXmlDocument() [3/4]

TiXmlDocument ( const std::string & documentName )

Constructor.

Definition at line 899 of file tinyxml.cpp.

◆ TiXmlDocument() [4/4]

TiXmlDocument ( const TiXmlDocument & copy )

Definition at line 908 of file tinyxml.cpp.

◆ ~TiXmlDocument()

virtual ~TiXmlDocument ( )

inlinevirtual

Definition at line 1330 of file tinyxml.h.

Member Function Documentation

◆ operator=()

TiXmlDocument & operator= ( const TiXmlDocument & copy )

Definition at line 914 of file tinyxml.cpp.

◆ LoadFile() [1/4]

bool LoadFile ( TiXmlEncoding encoding = TIXML_DEFAULT_ENCODING )

Load a file using the current document value.

Returns true if successful. Will delete any existing document data before loading.

Definition at line 922 of file tinyxml.cpp.

◆ SaveFile() [1/4]

bool SaveFile ( ) const

Save a file using the current document value. Returns true if successful.

Definition at line 928 of file tinyxml.cpp.

◆ LoadFile() [2/4]

bool LoadFile	(	const char *	filename,
		TiXmlEncoding	encoding = `TIXML_DEFAULT_ENCODING`
	)

Load a file using the given filename. Returns true if successful.

Definition at line 933 of file tinyxml.cpp.

◆ SaveFile() [2/4]

bool SaveFile ( const char * filename ) const

Save a file using the given filename. Returns true if successful.

Definition at line 1052 of file tinyxml.cpp.

◆ LoadFile() [3/4]

bool LoadFile	(	FILE *	file,
		TiXmlEncoding	encoding = `TIXML_DEFAULT_ENCODING`
	)

Load a file using the given FILE*.

Returns true if successful. Note that this method doesn't stream - the entire object pointed at by the FILE* will be interpreted as an XML file. TinyXML doesn't stream in XML from the current file location. Streaming may be added in the future.

Definition at line 954 of file tinyxml.cpp.

◆ SaveFile() [3/4]

bool SaveFile ( FILE * fp ) const

Save a file using the given FILE*. Returns true if successful.

Definition at line 1066 of file tinyxml.cpp.

◆ LoadFile() [4/4]

bool LoadFile	(	const std::string &	filename,
		TiXmlEncoding	encoding = `TIXML_DEFAULT_ENCODING`
	)

inline

Parameters

encoding STL std::string version.

Definition at line 1352 of file tinyxml.h.

◆ SaveFile() [4/4]

bool SaveFile ( const std::string & filename ) const

inline

< STL std::string version.

Definition at line 1356 of file tinyxml.h.

◆ Parse()

const char * Parse	(	const char *	p,
		TiXmlParsingData *	data = `0`,
		TiXmlEncoding	encoding = `TIXML_DEFAULT_ENCODING`
	)

virtual

Parse the given null terminated block of xml data.

Passing in an encoding to this method (either TIXML_ENCODING_LEGACY or TIXML_ENCODING_UTF8 will force TinyXml to use that encoding, regardless of what TinyXml might otherwise try to detect.

Implements TiXmlBase.

Definition at line 700 of file tinyxmlparser.cpp.

◆ RootElement() [1/2]

const TiXmlElement* RootElement ( ) const

inline

Get the root element – the only top level element – of the document.

In well formed XML, there should only be one. TinyXml is tolerant of multiple elements at the document level.

Definition at line 1371 of file tinyxml.h.

◆ RootElement() [2/2]

TiXmlElement* RootElement ( )

inline

Definition at line 1372 of file tinyxml.h.

◆ Error()

bool Error ( ) const

inline

If an error occurs, Error will be set to true.

Also,

The ErrorId() will contain the integer identifier of the error (not generally useful)
The ErrorDesc() method will return the name of the error. (very useful)
The ErrorRow() and ErrorCol() will return the location of the error (if known)

Definition at line 1379 of file tinyxml.h.

◆ ErrorDesc()

const char* ErrorDesc ( ) const

inline

Contains a textual (english) description of the error if one occurs.

Definition at line 1382 of file tinyxml.h.

◆ ErrorId()

int ErrorId ( ) const

inline

Generally, you probably want the error string ( ErrorDesc() ).

But if you prefer the ErrorId, this function will fetch it.

Definition at line 1387 of file tinyxml.h.

◆ ErrorRow()

int ErrorRow ( ) const

inline

Returns the location (if known) of the error.

The first column is column 1, and the first row is row 1. A value of 0 means the row and column wasn't applicable (memory errors, for example, have no row/column) or the parser lost the error. (An error in the error reporting, in that case.)

See also: SetTabSize, Row, Column

Definition at line 1396 of file tinyxml.h.

◆ ErrorCol()

int ErrorCol ( ) const

inline

The column where the error occured. See ErrorRow()

Definition at line 1397 of file tinyxml.h.

◆ SetTabSize()

void SetTabSize ( int _tabsize )

inline

SetTabSize() allows the error reporting functions (ErrorRow() and ErrorCol()) to report the correct values for row and column.

It does not change the output or input in any way.

By calling this method, with a tab size greater than 0, the row and column of each node and attribute is stored when the file is loaded. Very useful for tracking the DOM back in to the source file.

The tab size is required for calculating the location of nodes. If not set, the default of 4 is used. The tabsize is set per document. Setting the tabsize to 0 disables row/column tracking.

Note that row and column tracking is not supported when using operator>>.

The tab size needs to be enabled before the parse or load. Correct usage:

TiXmlDocument doc;
doc.SetTabSize( 8 );
doc.Load( "myfile.xml" );

See also: Row, Column

Definition at line 1423 of file tinyxml.h.

◆ TabSize()

int TabSize ( ) const

inline

Definition at line 1425 of file tinyxml.h.

◆ ClearError()

void ClearError ( )

inline

If you have handled the error, it can be reset with this call.

The error state is automatically cleared if you Parse a new XML block.

Definition at line 1430 of file tinyxml.h.

◆ Print() [1/2]

void Print ( ) const

inline

Write the document to standard out using formatted printing ("pretty print").

Definition at line 1438 of file tinyxml.h.

◆ Print() [2/2]

void Print	(	FILE *	cfile,
		int	depth = `0`
	)		const

virtual

Print this Document to a FILE stream.

Implements TiXmlBase.

Definition at line 1113 of file tinyxml.cpp.

◆ SetError()

void SetError	(	int	err,
		const char *	errorLocation,
		TiXmlParsingData *	prevData,
		TiXmlEncoding	encoding
	)

Definition at line 794 of file tinyxmlparser.cpp.

◆ ToDocument() [1/2]

virtual const TiXmlDocument* ToDocument ( ) const

inlinevirtual

Cast to a more defined type. Will return null not of the requested type.

Reimplemented from TiXmlNode.

Definition at line 1451 of file tinyxml.h.

◆ ToDocument() [2/2]

virtual TiXmlDocument* ToDocument ( )

inlinevirtual

Cast to a more defined type. Will return null not of the requested type.

Reimplemented from TiXmlNode.

Definition at line 1452 of file tinyxml.h.

◆ Accept()

bool Accept ( TiXmlVisitor * content ) const

virtual

Walk the XML tree visiting this node and all of its children.

Implements TiXmlNode.

Definition at line 1124 of file tinyxml.cpp.

◆ Clone()

TiXmlNode * Clone ( ) const

protectedvirtual

Create an exact duplicate of this node and return it.

The memory must be deleted by the caller.

Implements TiXmlNode.

Definition at line 1102 of file tinyxml.cpp.

◆ StreamIn()

void StreamIn	(	std::istream *	in,
		TIXML_STRING *	tag
	)

protectedvirtual

Implements TiXmlNode.

Definition at line 638 of file tinyxmlparser.cpp.

◆ CopyTo()

void CopyTo ( TiXmlDocument * target ) const

private

Definition at line 1083 of file tinyxml.cpp.

Member Data Documentation

◆ error

bool error

private

Definition at line 1466 of file tinyxml.h.

◆ errorId

int errorId

private

Definition at line 1467 of file tinyxml.h.

◆ errorDesc

TIXML_STRING errorDesc

private

Definition at line 1468 of file tinyxml.h.

◆ tabsize

int tabsize

private

Definition at line 1469 of file tinyxml.h.

◆ errorLocation

TiXmlCursor errorLocation

private

Definition at line 1470 of file tinyxml.h.

◆ useMicrosoftBOM

bool useMicrosoftBOM

private

Definition at line 1471 of file tinyxml.h.

The documentation for this class was generated from the following files:

/home/andreas/Development/drewke.net/tdme2/ext/tinyxml/tinyxml.h
/home/andreas/Development/drewke.net/tdme2/ext/tinyxml/tinyxml.cpp
/home/andreas/Development/drewke.net/tdme2/ext/tinyxml/tinyxmlparser.cpp

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TiXmlDocument() [1/4]

◆ TiXmlDocument() [2/4]

◆ TiXmlDocument() [3/4]

◆ TiXmlDocument() [4/4]

◆ ~TiXmlDocument()

Member Function Documentation

◆ operator=()

◆ LoadFile() [1/4]

◆ SaveFile() [1/4]

◆ LoadFile() [2/4]

◆ SaveFile() [2/4]

◆ LoadFile() [3/4]

◆ SaveFile() [3/4]

◆ LoadFile() [4/4]

◆ SaveFile() [4/4]

◆ Parse()

◆ RootElement() [1/2]

◆ RootElement() [2/2]

◆ Error()

◆ ErrorDesc()

◆ ErrorId()

◆ ErrorRow()

◆ ErrorCol()

◆ SetTabSize()

◆ TabSize()

◆ ClearError()

◆ Print() [1/2]

◆ Print() [2/2]

◆ SetError()

◆ ToDocument() [1/2]

◆ ToDocument() [2/2]

◆ Accept()

◆ Clone()

◆ StreamIn()

◆ CopyTo()

Member Data Documentation

◆ error

◆ errorId

◆ errorDesc

◆ tabsize

◆ errorLocation

◆ useMicrosoftBOM
