In correct XML the declaration is the first entry in the file. More...

#include </home/andreas/Development/drewke.net/tdme2/ext/tinyxml/tinyxml.h>

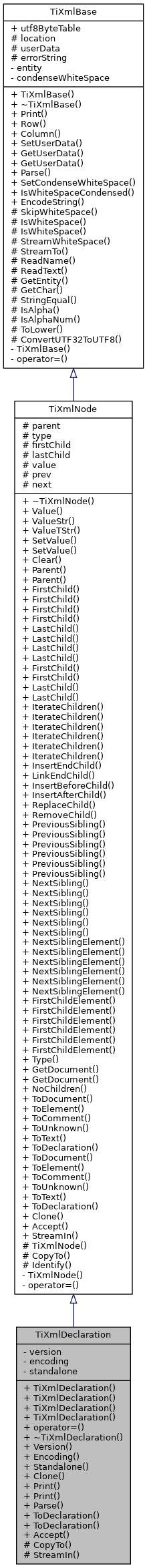

Inheritance diagram for TiXmlDeclaration:

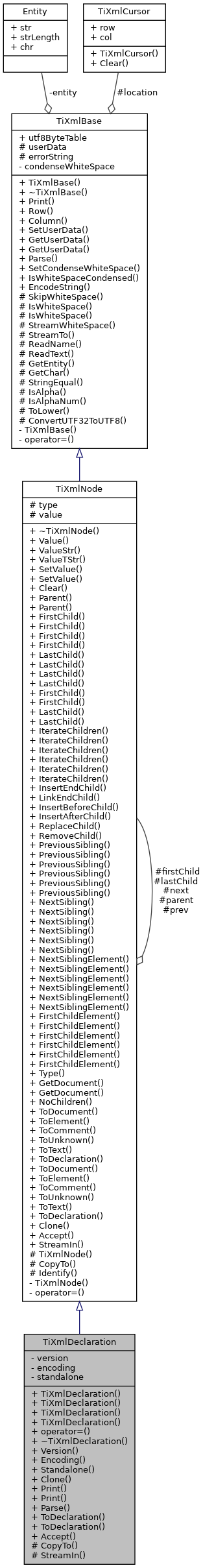

Collaboration diagram for TiXmlDeclaration:

Public Member Functions
	TiXmlDeclaration ()
	Construct an empty declaration. More...

	TiXmlDeclaration (const std::string &_version, const std::string &_encoding, const std::string &_standalone)
	Constructor. More...

	TiXmlDeclaration (const char _version, const char _encoding, const char *_standalone)
	Construct. More...

	TiXmlDeclaration (const TiXmlDeclaration &copy)

TiXmlDeclaration &	operator= (const TiXmlDeclaration &copy)

virtual	~TiXmlDeclaration ()

const char *	Version () const
	Version. Will return an empty string if none was found. More...

const char *	Encoding () const
	Encoding. Will return an empty string if none was found. More...

const char *	Standalone () const
	Is this a standalone document? More...

virtual TiXmlNode *	Clone () const
	Creates a copy of this Declaration and returns it. More...

virtual void	Print (FILE cfile, int depth, TIXML_STRING str) const

virtual void	Print (FILE *cfile, int depth) const
	All TinyXml classes can print themselves to a filestream or the string class (TiXmlString in non-STL mode, std::string in STL mode.) Either or both cfile and str can be null. More...

virtual const char *	Parse (const char p, TiXmlParsingData data, TiXmlEncoding encoding)

virtual const TiXmlDeclaration *	ToDeclaration () const
	Cast to a more defined type. Will return null not of the requested type. More...

virtual TiXmlDeclaration *	ToDeclaration ()
	Cast to a more defined type. Will return null not of the requested type. More...

virtual bool	Accept (TiXmlVisitor *visitor) const
	Walk the XML tree visiting this node and all of its children. More...

Public Member Functions inherited from TiXmlNode
virtual	~TiXmlNode ()

const char *	Value () const
	The meaning of 'value' changes for the specific type of TiXmlNode. More...

const std::string &	ValueStr () const
	Return Value() as a std::string. More...

const TIXML_STRING &	ValueTStr () const

void	SetValue (const char *_value)
	Changes the value of the node. More...

void	SetValue (const std::string &_value)
	STL std::string form. More...

void	Clear ()
	Delete all the children of this node. Does not affect 'this'. More...

TiXmlNode *	Parent ()
	One step up the DOM. More...

const TiXmlNode *	Parent () const

const TiXmlNode *	FirstChild () const
	The first child of this node. Will be null if there are no children. More...

TiXmlNode *	FirstChild ()

const TiXmlNode *	FirstChild (const char *value) const
	The first child of this node with the matching 'value'. More...

TiXmlNode *	FirstChild (const char *_value)
	The first child of this node with the matching 'value'. Will be null if none found. More...

const TiXmlNode *	LastChild () const

TiXmlNode *	LastChild ()
	The last child of this node. Will be null if there are no children. More...

const TiXmlNode *	LastChild (const char *value) const

TiXmlNode *	LastChild (const char *_value)
	The last child of this node matching 'value'. Will be null if there are no children. More...

const TiXmlNode *	FirstChild (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	FirstChild (const std::string &_value)
	STL std::string form. More...

const TiXmlNode *	LastChild (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	LastChild (const std::string &_value)
	STL std::string form. More...

const TiXmlNode *	IterateChildren (const TiXmlNode *previous) const
	An alternate way to walk the children of a node. More...

TiXmlNode *	IterateChildren (const TiXmlNode *previous)

const TiXmlNode *	IterateChildren (const char value, const TiXmlNode previous) const
	This flavor of IterateChildren searches for children with a particular 'value'. More...

TiXmlNode *	IterateChildren (const char _value, const TiXmlNode previous)

const TiXmlNode *	IterateChildren (const std::string &_value, const TiXmlNode *previous) const
	STL std::string form. More...

TiXmlNode *	IterateChildren (const std::string &_value, const TiXmlNode *previous)
	STL std::string form. More...

TiXmlNode *	InsertEndChild (const TiXmlNode &addThis)
	Add a new node related to this. More...

TiXmlNode *	LinkEndChild (TiXmlNode *addThis)
	Add a new node related to this. More...

TiXmlNode *	InsertBeforeChild (TiXmlNode *beforeThis, const TiXmlNode &addThis)
	Add a new node related to this. More...

TiXmlNode *	InsertAfterChild (TiXmlNode *afterThis, const TiXmlNode &addThis)
	Add a new node related to this. More...

TiXmlNode *	ReplaceChild (TiXmlNode *replaceThis, const TiXmlNode &withThis)
	Replace a child of this node. More...

bool	RemoveChild (TiXmlNode *removeThis)
	Delete a child of this node. More...

const TiXmlNode *	PreviousSibling () const
	Navigate to a sibling node. More...

TiXmlNode *	PreviousSibling ()

const TiXmlNode *	PreviousSibling (const char *) const
	Navigate to a sibling node. More...

TiXmlNode *	PreviousSibling (const char *_prev)

const TiXmlNode *	PreviousSibling (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	PreviousSibling (const std::string &_value)
	STL std::string form. More...

const TiXmlNode *	NextSibling (const std::string &_value) const
	STL std::string form. More...

TiXmlNode *	NextSibling (const std::string &_value)
	STL std::string form. More...

const TiXmlNode *	NextSibling () const
	Navigate to a sibling node. More...

TiXmlNode *	NextSibling ()

const TiXmlNode *	NextSibling (const char *) const
	Navigate to a sibling node with the given 'value'. More...

TiXmlNode *	NextSibling (const char *_next)

const TiXmlElement *	NextSiblingElement () const
	Convenience function to get through elements. More...

TiXmlElement *	NextSiblingElement ()

const TiXmlElement *	NextSiblingElement (const char *) const
	Convenience function to get through elements. More...

TiXmlElement *	NextSiblingElement (const char *_next)

const TiXmlElement *	NextSiblingElement (const std::string &_value) const
	STL std::string form. More...

TiXmlElement *	NextSiblingElement (const std::string &_value)
	STL std::string form. More...

const TiXmlElement *	FirstChildElement () const
	Convenience function to get through elements. More...

TiXmlElement *	FirstChildElement ()

const TiXmlElement *	FirstChildElement (const char *_value) const
	Convenience function to get through elements. More...

TiXmlElement *	FirstChildElement (const char *_value)

const TiXmlElement *	FirstChildElement (const std::string &_value) const
	STL std::string form. More...

TiXmlElement *	FirstChildElement (const std::string &_value)
	STL std::string form. More...

int	Type () const
	Query the type (as an enumerated value, above) of this node. More...

const TiXmlDocument *	GetDocument () const
	Return a pointer to the Document this node lives in. More...

TiXmlDocument *	GetDocument ()

bool	NoChildren () const
	Returns true if this node has no children. More...

virtual const TiXmlDocument *	ToDocument () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlElement *	ToElement () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlComment *	ToComment () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlUnknown *	ToUnknown () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlText *	ToText () const
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlDocument *	ToDocument ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlElement *	ToElement ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlComment *	ToComment ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlUnknown *	ToUnknown ()
	Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlText *	ToText ()
	Cast to a more defined type. Will return null if not of the requested type. More...

Public Member Functions inherited from TiXmlBase
	TiXmlBase ()

virtual	~TiXmlBase ()

int	Row () const
	Return the position, in the original source file, of this node or attribute. More...

int	Column () const
	See Row() More...

void	SetUserData (void *user)
	Set a pointer to arbitrary user data. More...

void *	GetUserData ()
	Get a pointer to arbitrary user data. More...

const void *	GetUserData () const
	Get a pointer to arbitrary user data. More...

Protected Member Functions
void	CopyTo (TiXmlDeclaration *target) const

virtual void	StreamIn (std::istream in, TIXML_STRING tag)

Protected Member Functions inherited from TiXmlNode
	TiXmlNode (NodeType _type)

void	CopyTo (TiXmlNode *target) const

TiXmlNode *	Identify (const char *start, TiXmlEncoding encoding)

Private Attributes
TIXML_STRING	version

TIXML_STRING	encoding

TIXML_STRING	standalone

Additional Inherited Members
Public Types inherited from TiXmlNode
enum	NodeType { TINYXML_DOCUMENT , TINYXML_ELEMENT , TINYXML_COMMENT , TINYXML_UNKNOWN , TINYXML_TEXT , TINYXML_DECLARATION , TINYXML_TYPECOUNT }
	The types of XML nodes supported by TinyXml. More...

Public Types inherited from TiXmlBase
enum	{ TIXML_NO_ERROR = 0 , TIXML_ERROR , TIXML_ERROR_OPENING_FILE , TIXML_ERROR_PARSING_ELEMENT , TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME , TIXML_ERROR_READING_ELEMENT_VALUE , TIXML_ERROR_READING_ATTRIBUTES , TIXML_ERROR_PARSING_EMPTY , TIXML_ERROR_READING_END_TAG , TIXML_ERROR_PARSING_UNKNOWN , TIXML_ERROR_PARSING_COMMENT , TIXML_ERROR_PARSING_DECLARATION , TIXML_ERROR_DOCUMENT_EMPTY , TIXML_ERROR_EMBEDDED_NULL , TIXML_ERROR_PARSING_CDATA , TIXML_ERROR_DOCUMENT_TOP_ONLY , TIXML_ERROR_STRING_COUNT }

Static Public Member Functions inherited from TiXmlBase
static void	SetCondenseWhiteSpace (bool condense)
	The world does not agree on whether white space should be kept or not. More...

static bool	IsWhiteSpaceCondensed ()
	Return the current white space setting. More...

static void	EncodeString (const TIXML_STRING &str, TIXML_STRING *out)
	Expands entities in a string. More...

Static Public Attributes inherited from TiXmlBase
static const int	utf8ByteTable [256]

Static Protected Member Functions inherited from TiXmlBase
static const char *	SkipWhiteSpace (const char *, TiXmlEncoding encoding)

static bool	IsWhiteSpace (char c)

static bool	IsWhiteSpace (int c)

static bool	StreamWhiteSpace (std::istream in, TIXML_STRING tag)

static bool	StreamTo (std::istream in, int character, TIXML_STRING tag)

static const char *	ReadName (const char p, TIXML_STRING name, TiXmlEncoding encoding)

static const char *	ReadText (const char in, TIXML_STRING text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)

static const char *	GetEntity (const char in, char value, int *length, TiXmlEncoding encoding)

static const char *	GetChar (const char p, char _value, int *length, TiXmlEncoding encoding)

static bool	StringEqual (const char p, const char endTag, bool ignoreCase, TiXmlEncoding encoding)

static int	IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)

static int	IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)

static int	ToLower (int v, TiXmlEncoding encoding)

static void	ConvertUTF32ToUTF8 (unsigned long input, char output, int length)

Protected Attributes inherited from TiXmlNode
TiXmlNode *	parent

NodeType	type

TiXmlNode *	firstChild

TiXmlNode *	lastChild

TIXML_STRING	value

TiXmlNode *	prev

TiXmlNode *	next

Protected Attributes inherited from TiXmlBase
TiXmlCursor	location

void *	userData
	Field containing a generic user pointer. More...

Static Protected Attributes inherited from TiXmlBase
static const char *	errorString [TIXML_ERROR_STRING_COUNT]

Detailed Description

In correct XML the declaration is the first entry in the file.

    <?xml version="1.0" standalone="yes"?>

TinyXml will happily read or write files without a declaration, however. There are 3 possible attributes to the declaration: version, encoding, and standalone.

Note: In this version of the code, the attributes are handled as special cases, not generic attributes, simply because there can only be at most 3 and they are always the same.

Definition at line 1215 of file tinyxml.h.

Constructor & Destructor Documentation

◆ TiXmlDeclaration() [1/4]

TiXmlDeclaration ( )

inline

Construct an empty declaration.

Definition at line 1219 of file tinyxml.h.

◆ TiXmlDeclaration() [2/4]

TiXmlDeclaration	(	const std::string &	_version,
		const std::string &	_encoding,
		const std::string &	_standalone
	)

Constructor.

Definition at line 1358 of file tinyxml.cpp.

◆ TiXmlDeclaration() [3/4]

TiXmlDeclaration	(	const char *	_version,
		const char *	_encoding,
		const char *	_standalone
	)

Construct.

Definition at line 1347 of file tinyxml.cpp.

◆ TiXmlDeclaration() [4/4]

TiXmlDeclaration ( const TiXmlDeclaration & copy )

Definition at line 1369 of file tinyxml.cpp.

◆ ~TiXmlDeclaration()

virtual ~TiXmlDeclaration ( )

inlinevirtual

Definition at line 1234 of file tinyxml.h.

Member Function Documentation

◆ operator=()

TiXmlDeclaration & operator= ( const TiXmlDeclaration & copy )

Definition at line 1376 of file tinyxml.cpp.

◆ Version()

const char* Version ( ) const

inline

Version. Will return an empty string if none was found.

Definition at line 1237 of file tinyxml.h.

◆ Encoding()

const char* Encoding ( ) const

inline

Encoding. Will return an empty string if none was found.

Definition at line 1239 of file tinyxml.h.

◆ Standalone()

const char* Standalone ( ) const

inline

Is this a standalone document?

Definition at line 1241 of file tinyxml.h.

◆ Clone()

TiXmlNode * Clone ( ) const

virtual

Creates a copy of this Declaration and returns it.

Implements TiXmlNode.

Definition at line 1422 of file tinyxml.cpp.

◆ Print() [1/2]

void Print	(	FILE *	cfile,
		int	depth,
		TIXML_STRING *	str
	)		const

virtual

Definition at line 1384 of file tinyxml.cpp.

◆ Print() [2/2]

virtual void Print	(	FILE *	cfile,
		int	depth
	)		const

inlinevirtual

All TinyXml classes can print themselves to a filestream or the string class (TiXmlString in non-STL mode, std::string in STL mode.) Either or both cfile and str can be null.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implements TiXmlBase.

Definition at line 1247 of file tinyxml.h.

◆ Parse()

const char * Parse	(	const char *	p,
		TiXmlParsingData *	data,
		TiXmlEncoding	encoding
	)

virtual

Implements TiXmlBase.

Definition at line 1559 of file tinyxmlparser.cpp.

◆ ToDeclaration() [1/2]

virtual const TiXmlDeclaration* ToDeclaration ( ) const

inlinevirtual

Cast to a more defined type. Will return null not of the requested type.

Reimplemented from TiXmlNode.

Definition at line 1253 of file tinyxml.h.

◆ ToDeclaration() [2/2]

virtual TiXmlDeclaration* ToDeclaration ( )

inlinevirtual

Cast to a more defined type. Will return null not of the requested type.

Reimplemented from TiXmlNode.

Definition at line 1254 of file tinyxml.h.

◆ Accept()

bool Accept ( TiXmlVisitor * visitor ) const

virtual

Walk the XML tree visiting this node and all of its children.

Implements TiXmlNode.

Definition at line 1416 of file tinyxml.cpp.

◆ CopyTo()

void CopyTo ( TiXmlDeclaration * target ) const

protected

Definition at line 1406 of file tinyxml.cpp.

◆ StreamIn()

void StreamIn	(	std::istream *	in,
		TIXML_STRING *	tag
	)

protectedvirtual

Implements TiXmlNode.

Definition at line 1536 of file tinyxmlparser.cpp.

Member Data Documentation

◆ version

TIXML_STRING version

private

Definition at line 1267 of file tinyxml.h.

◆ encoding

TIXML_STRING encoding

private

Definition at line 1268 of file tinyxml.h.

◆ standalone

TIXML_STRING standalone

private

Definition at line 1269 of file tinyxml.h.

The documentation for this class was generated from the following files:

/home/andreas/Development/drewke.net/tdme2/ext/tinyxml/tinyxml.h
/home/andreas/Development/drewke.net/tdme2/ext/tinyxml/tinyxml.cpp
/home/andreas/Development/drewke.net/tdme2/ext/tinyxml/tinyxmlparser.cpp

Public Member Functions

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TiXmlDeclaration() [1/4]

◆ TiXmlDeclaration() [2/4]

◆ TiXmlDeclaration() [3/4]

◆ TiXmlDeclaration() [4/4]

◆ ~TiXmlDeclaration()

Member Function Documentation

◆ operator=()

◆ Version()

◆ Encoding()

◆ Standalone()

◆ Clone()

◆ Print() [1/2]

◆ Print() [2/2]

◆ Parse()

◆ ToDeclaration() [1/2]

◆ ToDeclaration() [2/2]

◆ Accept()

◆ CopyTo()

◆ StreamIn()

Member Data Documentation

◆ version

◆ encoding

◆ standalone
