An attribute is a name-value pair. More...

#include </home/andreas/Development/drewke.net/tdme2/ext/tinyxml/tinyxml.h>

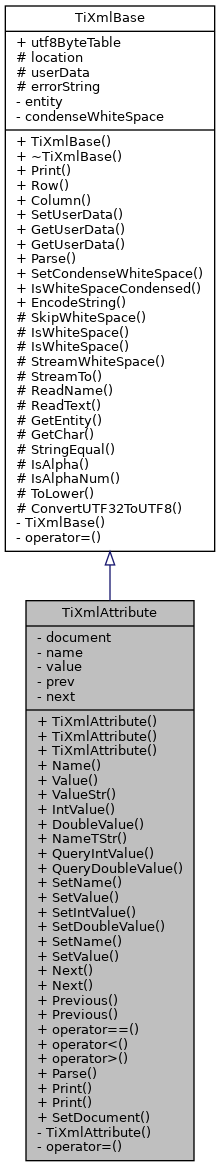

Inheritance diagram for TiXmlAttribute:

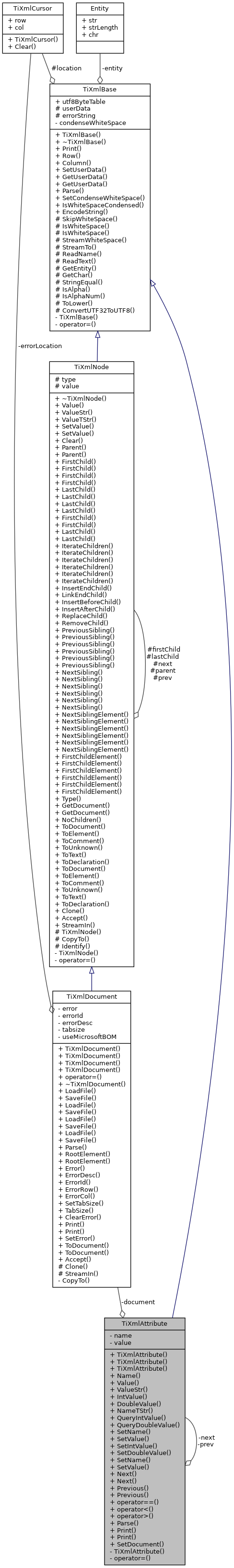

Collaboration diagram for TiXmlAttribute:

Public Member Functions
	TiXmlAttribute ()
	Construct an empty attribute. More...

	TiXmlAttribute (const std::string &_name, const std::string &_value)
	std::string constructor. More...

	TiXmlAttribute (const char _name, const char _value)
	Construct an attribute with a name and value. More...

const char *	Name () const
	Return the name of this attribute. More...

const char *	Value () const
	Return the value of this attribute. More...

const std::string &	ValueStr () const
	Return the value of this attribute. More...

int	IntValue () const
	Return the value of this attribute, converted to an integer. More...

double	DoubleValue () const
	Return the value of this attribute, converted to a double. More...

const TIXML_STRING &	NameTStr () const

int	QueryIntValue (int *_value) const
	QueryIntValue examines the value string. More...

int	QueryDoubleValue (double *_value) const
	QueryDoubleValue examines the value string. See QueryIntValue(). More...

void	SetName (const char *_name)
	Set the name of this attribute. More...

void	SetValue (const char *_value)
	Set the value. More...

void	SetIntValue (int _value)
	Set the value from an integer. More...

void	SetDoubleValue (double _value)
	Set the value from a double. More...

void	SetName (const std::string &_name)
	STL std::string form. More...

void	SetValue (const std::string &_value)
	STL std::string form. More...

const TiXmlAttribute *	Next () const
	Get the next sibling attribute in the DOM. Returns null at end. More...

TiXmlAttribute *	Next ()

const TiXmlAttribute *	Previous () const
	Get the previous sibling attribute in the DOM. Returns null at beginning. More...

TiXmlAttribute *	Previous ()

bool	operator== (const TiXmlAttribute &rhs) const

bool	operator< (const TiXmlAttribute &rhs) const

bool	operator> (const TiXmlAttribute &rhs) const

virtual const char *	Parse (const char p, TiXmlParsingData data, TiXmlEncoding encoding)

virtual void	Print (FILE *cfile, int depth) const
	All TinyXml classes can print themselves to a filestream or the string class (TiXmlString in non-STL mode, std::string in STL mode.) Either or both cfile and str can be null. More...

void	Print (FILE cfile, int depth, TIXML_STRING str) const

void	SetDocument (TiXmlDocument *doc)

Public Member Functions inherited from TiXmlBase
	TiXmlBase ()

virtual	~TiXmlBase ()

int	Row () const
	Return the position, in the original source file, of this node or attribute. More...

int	Column () const
	See Row() More...

void	SetUserData (void *user)
	Set a pointer to arbitrary user data. More...

void *	GetUserData ()
	Get a pointer to arbitrary user data. More...

const void *	GetUserData () const
	Get a pointer to arbitrary user data. More...

Private Member Functions
	TiXmlAttribute (const TiXmlAttribute &)

void	operator= (const TiXmlAttribute &base)

Private Attributes
TiXmlDocument *	document

TIXML_STRING	name

TIXML_STRING	value

TiXmlAttribute *	prev

TiXmlAttribute *	next

Friends
class	TiXmlAttributeSet

Additional Inherited Members
Public Types inherited from TiXmlBase
enum	{ TIXML_NO_ERROR = 0 , TIXML_ERROR , TIXML_ERROR_OPENING_FILE , TIXML_ERROR_PARSING_ELEMENT , TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME , TIXML_ERROR_READING_ELEMENT_VALUE , TIXML_ERROR_READING_ATTRIBUTES , TIXML_ERROR_PARSING_EMPTY , TIXML_ERROR_READING_END_TAG , TIXML_ERROR_PARSING_UNKNOWN , TIXML_ERROR_PARSING_COMMENT , TIXML_ERROR_PARSING_DECLARATION , TIXML_ERROR_DOCUMENT_EMPTY , TIXML_ERROR_EMBEDDED_NULL , TIXML_ERROR_PARSING_CDATA , TIXML_ERROR_DOCUMENT_TOP_ONLY , TIXML_ERROR_STRING_COUNT }

Static Public Member Functions inherited from TiXmlBase
static void	SetCondenseWhiteSpace (bool condense)
	The world does not agree on whether white space should be kept or not. More...

static bool	IsWhiteSpaceCondensed ()
	Return the current white space setting. More...

static void	EncodeString (const TIXML_STRING &str, TIXML_STRING *out)
	Expands entities in a string. More...

Static Public Attributes inherited from TiXmlBase
static const int	utf8ByteTable [256]

Static Protected Member Functions inherited from TiXmlBase
static const char *	SkipWhiteSpace (const char *, TiXmlEncoding encoding)

static bool	IsWhiteSpace (char c)

static bool	IsWhiteSpace (int c)

static bool	StreamWhiteSpace (std::istream in, TIXML_STRING tag)

static bool	StreamTo (std::istream in, int character, TIXML_STRING tag)

static const char *	ReadName (const char p, TIXML_STRING name, TiXmlEncoding encoding)

static const char *	ReadText (const char in, TIXML_STRING text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)

static const char *	GetEntity (const char in, char value, int *length, TiXmlEncoding encoding)

static const char *	GetChar (const char p, char _value, int *length, TiXmlEncoding encoding)

static bool	StringEqual (const char p, const char endTag, bool ignoreCase, TiXmlEncoding encoding)

static int	IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)

static int	IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)

static int	ToLower (int v, TiXmlEncoding encoding)

static void	ConvertUTF32ToUTF8 (unsigned long input, char output, int length)

Protected Attributes inherited from TiXmlBase
TiXmlCursor	location

void *	userData
	Field containing a generic user pointer. More...

Static Protected Attributes inherited from TiXmlBase
static const char *	errorString [TIXML_ERROR_STRING_COUNT]

Detailed Description

An attribute is a name-value pair.

Elements have an arbitrary number of attributes, each with a unique name.

Note: The attributes are not TiXmlNodes, since they are not part of the tinyXML document object model. There are other suggested ways to look at this problem.

Definition at line 733 of file tinyxml.h.

Constructor & Destructor Documentation

◆ TiXmlAttribute() [1/4]

TiXmlAttribute ( )

inline

Construct an empty attribute.

Definition at line 739 of file tinyxml.h.

◆ TiXmlAttribute() [2/4]

TiXmlAttribute	(	const std::string &	_name,
		const std::string &	_value
	)

inline

std::string constructor.

Definition at line 746 of file tinyxml.h.

◆ TiXmlAttribute() [3/4]

TiXmlAttribute	(	const char *	_name,
		const char *	_value
	)

inline

Construct an attribute with a name and value.

Definition at line 755 of file tinyxml.h.

◆ TiXmlAttribute() [4/4]

TiXmlAttribute ( const TiXmlAttribute & )

private

Member Function Documentation

◆ Name()

const char* Name ( ) const

inline

Return the name of this attribute.

Definition at line 763 of file tinyxml.h.

◆ Value()

const char* Value ( ) const

inline

Return the value of this attribute.

Definition at line 764 of file tinyxml.h.

◆ ValueStr()

const std::string& ValueStr ( ) const

inline

Return the value of this attribute.

Definition at line 765 of file tinyxml.h.

◆ IntValue()

int IntValue ( ) const

Return the value of this attribute, converted to an integer.

Definition at line 1240 of file tinyxml.cpp.

◆ DoubleValue()

double DoubleValue ( ) const

Return the value of this attribute, converted to a double.

Definition at line 1245 of file tinyxml.cpp.

◆ NameTStr()

const TIXML_STRING& NameTStr ( ) const

inline

Definition at line 770 of file tinyxml.h.

◆ QueryIntValue()

int QueryIntValue ( int * _value ) const

QueryIntValue examines the value string.

It is an alternative to the IntValue() method with richer error checking. If the value is an integer, it is stored in 'value' and the call returns TIXML_SUCCESS. If it is not an integer, it returns TIXML_WRONG_TYPE.

A specialized but useful call. Note that for success it returns 0, which is the opposite of almost all other TinyXml calls.

Definition at line 1204 of file tinyxml.cpp.

◆ QueryDoubleValue()

int QueryDoubleValue ( double * _value ) const

QueryDoubleValue examines the value string. See QueryIntValue().

Definition at line 1211 of file tinyxml.cpp.

◆ SetName() [1/2]

void SetName ( const char * _name )

inline

Set the name of this attribute.

Definition at line 785 of file tinyxml.h.

◆ SetValue() [1/2]

void SetValue ( const char * _value )

inline

Set the value.

Definition at line 786 of file tinyxml.h.

◆ SetIntValue()

void SetIntValue ( int _value )

Set the value from an integer.

Definition at line 1218 of file tinyxml.cpp.

◆ SetDoubleValue()

void SetDoubleValue ( double _value )

Set the value from a double.

Definition at line 1229 of file tinyxml.cpp.

◆ SetName() [2/2]

void SetName ( const std::string & _name )

inline

STL std::string form.

Definition at line 792 of file tinyxml.h.

◆ SetValue() [2/2]

void SetValue ( const std::string & _value )

inline

STL std::string form.

Definition at line 794 of file tinyxml.h.

◆ Next() [1/2]

const TiXmlAttribute * Next ( ) const

Get the next sibling attribute in the DOM. Returns null at end.

Definition at line 1138 of file tinyxml.cpp.

◆ Next() [2/2]

TiXmlAttribute* Next ( )

inline

Definition at line 798 of file tinyxml.h.

◆ Previous() [1/2]

const TiXmlAttribute * Previous ( ) const

Get the previous sibling attribute in the DOM. Returns null at beginning.

Definition at line 1158 of file tinyxml.cpp.

◆ Previous() [2/2]

TiXmlAttribute* Previous ( )

inline

Definition at line 804 of file tinyxml.h.

◆ operator==()

bool operator== ( const TiXmlAttribute & rhs ) const

inline

Definition at line 808 of file tinyxml.h.

◆ operator<()

bool operator< ( const TiXmlAttribute & rhs ) const

inline

Definition at line 809 of file tinyxml.h.

◆ operator>()

bool operator> ( const TiXmlAttribute & rhs ) const

inline

Definition at line 810 of file tinyxml.h.

◆ Parse()

const char * Parse	(	const char *	p,
		TiXmlParsingData *	data,
		TiXmlEncoding	encoding
	)

virtual

Implements TiXmlBase.

Definition at line 1379 of file tinyxmlparser.cpp.

◆ Print() [1/2]

virtual void Print	(	FILE *	cfile,
		int	depth
	)		const

inlinevirtual

All TinyXml classes can print themselves to a filestream or the string class (TiXmlString in non-STL mode, std::string in STL mode.) Either or both cfile and str can be null.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implements TiXmlBase.

Definition at line 818 of file tinyxml.h.

◆ Print() [2/2]

void Print	(	FILE *	cfile,
		int	depth,
		TIXML_STRING *	str
	)		const

Definition at line 1178 of file tinyxml.cpp.

◆ SetDocument()

void SetDocument ( TiXmlDocument * doc )

inline

Definition at line 825 of file tinyxml.h.

◆ operator=()

void operator= ( const TiXmlAttribute & base )

private

Friends And Related Function Documentation

◆ TiXmlAttributeSet

friend class TiXmlAttributeSet

friend

Definition at line 735 of file tinyxml.h.

Member Data Documentation

◆ document

TiXmlDocument* document

private

Definition at line 831 of file tinyxml.h.

◆ name

TIXML_STRING name

private

Definition at line 832 of file tinyxml.h.

◆ value

TIXML_STRING value

private

Definition at line 833 of file tinyxml.h.

◆ prev

TiXmlAttribute* prev

private

Definition at line 834 of file tinyxml.h.

◆ next

TiXmlAttribute* next

private

Definition at line 835 of file tinyxml.h.

The documentation for this class was generated from the following files:

/home/andreas/Development/drewke.net/tdme2/ext/tinyxml/tinyxml.h
/home/andreas/Development/drewke.net/tdme2/ext/tinyxml/tinyxml.cpp
/home/andreas/Development/drewke.net/tdme2/ext/tinyxml/tinyxmlparser.cpp

Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TiXmlAttribute() [1/4]

◆ TiXmlAttribute() [2/4]

◆ TiXmlAttribute() [3/4]

◆ TiXmlAttribute() [4/4]

Member Function Documentation

◆ Name()

◆ Value()

◆ ValueStr()

◆ IntValue()

◆ DoubleValue()

◆ NameTStr()

◆ QueryIntValue()

◆ QueryDoubleValue()

◆ SetName() [1/2]

◆ SetValue() [1/2]

◆ SetIntValue()

◆ SetDoubleValue()

◆ SetName() [2/2]

◆ SetValue() [2/2]

◆ Next() [1/2]

◆ Next() [2/2]

◆ Previous() [1/2]

◆ Previous() [2/2]

◆ operator==()

◆ operator<()

◆ operator>()

◆ Parse()

◆ Print() [1/2]

◆ Print() [2/2]

◆ SetDocument()

◆ operator=()

Friends And Related Function Documentation

◆ TiXmlAttributeSet

Member Data Documentation

◆ document

◆ name

◆ value

◆ prev

◆ next
